Through Editor


   Step1:

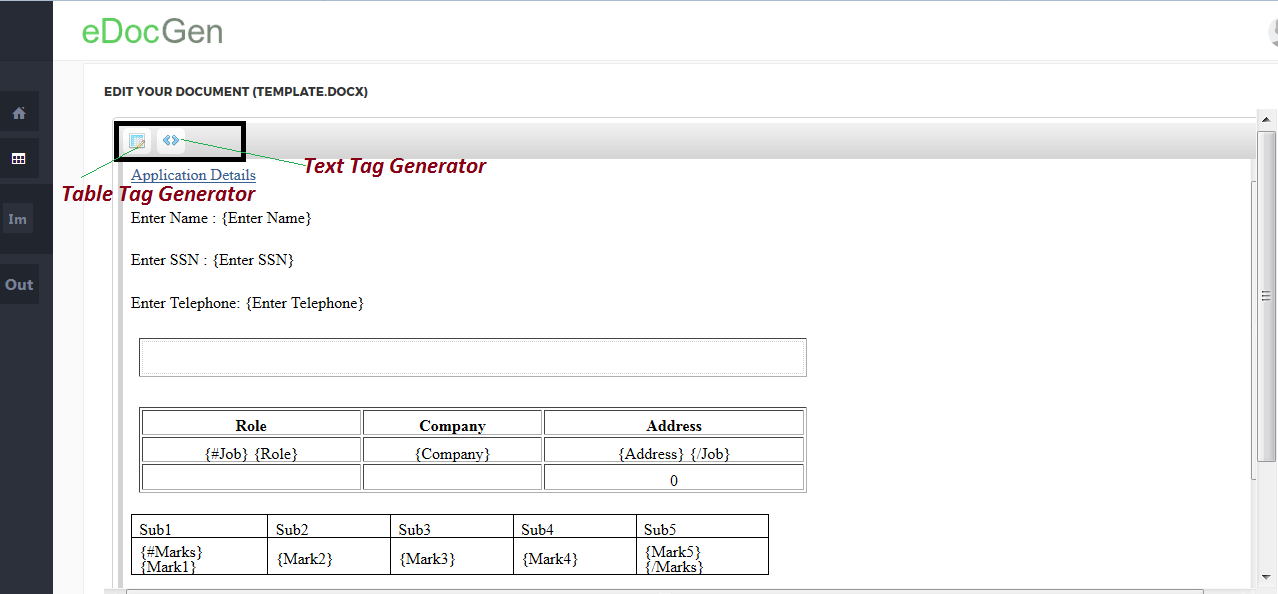

.     Select/highlight  first row of table below column headers in the document and click on table icon in menu editor.




Step2:


Enter Table marker name and comma separated column markers  in pop-up.



After clicking ok, you would notice that table marker starting with {#Table} and ending with {/Table}. Also column markers would be  surrounded by { } (i.e. flower brackets). Please ensure that the marker is a single word without spaces and can have hyphen (-) or underscore (_).


Manually Enter Table Tags


If you are advanced MS-Word or Google docs user , yourself can add tags manually in the editor or before uploading the document.

  • Add {#table id ="XXX"} at the beginning of the table and {/table id= "XXX"} at the end of the table as depicted below.
  • surround column names with { }


Header Column 1
 Header Column 2
 Header Column 3
{#table id=”tablemarker”}
{Column1marker}
 {Column2marker}
 {Column3marker}
{/table id=”tablemarker”}



  Please note that #table is a reserved keyword in EDocGen..The system then identifies tables and associated columns and auto-generates data capture screen accordingly.
